Heat Sink Manufacturer for Medical Equipments
Welcome to PT Heatsink, your gateway to cutting-edge thermal solutions. As a premier custom heat sink manufacturer in China, we specialize in elevating thermal management for medical equipment worldwide. With advanced technology, reliable processes, and exceptional quality systems, PT Heatsink is your go-to choice for ensuring efficiency and reliability in critical medical applications.
Our Partner :
Who we are
Solve all your thermal problems
PT Heatsink is one of the leading heat sink manufacturer for storage energy in China, we provide the most complete thermal solution with decades of design and manufacturing experiences
20+
Successful Cases
MRI Gradient Amplifier Cooling System Upgrade
Challenge
A medical imaging equipment manufacturer was struggling with overheating in its MRI gradient amplifiers. High-power components generated concentrated hotspots during scanning, leading to unstable output, frequent temperature alarms, and a 12% reduction in continuous scanning time. Traditional forced-air cooling was noisy and could not meet long-term reliability requirements.
Solution

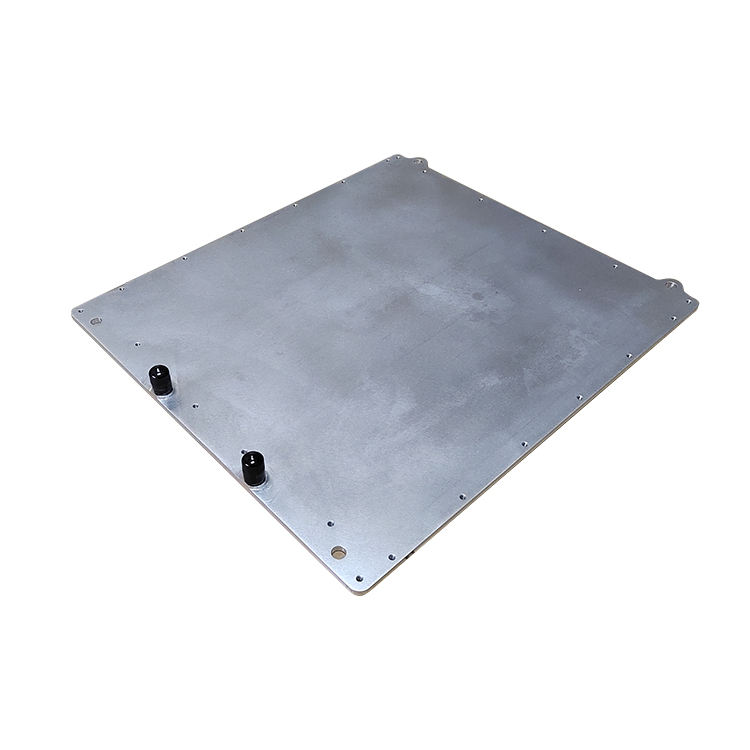

We designed a closed-loop liquid cooling system with embedded heat sinks to directly cool power modules. The solution used high-efficiency heat transfer materials and optimized heat conduction paths to spread heat evenly, without complex microchannels. We also added noise-dampening components to meet clinical environment standards
Result
- Peak component temperature lowered by 23°C
- System stability improved by 28%
- Continuous operation time extended by 90%
- Equipment noise reduced by 16dB
- Zero overheating alarms during 6-month clinical trial
Surgical Laser Device Thermal Control Solution
Challenge
A high-power surgical laser device suffered from uneven heating during long procedures. Internal temperature fluctuations affected laser output accuracy, and excessive heat shortened the service life of key optical parts. The original cooling design could not maintain stable temperatures under continuous high-load operation.
Solution
We adopted a closed-loop liquid cooling system. The cold plate was directly attached to the laser emission core components. By optimizing the internal flow channels of the cold plate (non-complex microchannels), we achieved rapid heat transfer and uniform temperature distribution across the entire area. A small, quiet circulating pump was integrated to balance cooling efficiency and the quiet requirement of clinical environments, with a simple structure that facilitates disinfection and maintenance.
Result
- Temperature fluctuation controlled within ±0.8°C
- Laser output stability increased by 22%
- Service life of core optical parts extended by 60%
- Device can run continuously for over 5 hours without performance decay
- On-site maintenance calls reduced by 30%
In Vitro Diagnostic (IVD) Analyzer Thermal Stability Project Challenge
Challenge
An in vitro diagnostic analyzer required strict temperature control for accurate test results. The original cooling system created local hotspots near reaction chambers, causing test deviations up to 7.5%. The client needed a more reliable thermal solution to meet clinical diagnostic standards.
Solution
We developed a vacuum-brazed cold plate with uniform cavity design to ensure consistent cooling across all sensing areas. The structure focused on temperature uniformity rather than maximum heat flux, and used reliable forming processes to avoid leakage risks. The system also included intelligent fan speed adjustment for low-power operation.
Result
- Temperature uniformity across detection zones improved by 82%
- Test data deviation reduced to below 1.2%
- Cooling energy consumption lowered by 24%
- Equipment passed repeated clinical verification
- Production yield increased by 11%
Heat Pipe Heat Sink for Medical Equipment
Discover unparalleled thermal management with our Heat Pipe Heat Sink solutions tailored for Medical Equipment. PT Heatsink’s advanced technology ensures optimal cooling performance, enhancing the efficiency and reliability of medical devices.
Our Heat Pipe Heat Sinks efficiently transfer heat, ensuring optimal operating temperatures for sensitive medical equipment. This results in extended lifespan and consistent performance.
By utilizing heat pipes, we streamline electrical cooling, reducing the need for energy-intensive air conditioning. This not only cuts operational costs but also aligns with eco-friendly practices, making it a sustainable choice.
Compact yet powerful, our Heat Pipe Heat Sinks provide high thermal conductivity in limited spaces, a critical factor in medical equipment design. This ensures the efficient use of space without compromising on cooling performance.
PT Heatsink’s Heat Pipe Heat Sink solutions for Medical Equipment offer superior heat dissipation, cost-efficiency, and space optimization. Elevate your medical devices’ thermal management with our advanced technology, ensuring reliability and longevity in critical applications.
5G Base Station BBU Liquid Cooling Optimization for a Leading Telecom
Challenge
A German telecommunications operator faced ongoing thermal issues with its 5G baseband unit (BBU) sites. High power density in 5G baseband units, combined with limited site ventilation, caused frequent overheating, unplanned downtime, and high cooling costs. Traditional air cooling could not keep up with the thermal demands, leading to a 15% increase in site energy consumption and a 0.8% annual service outage rate.
Solution

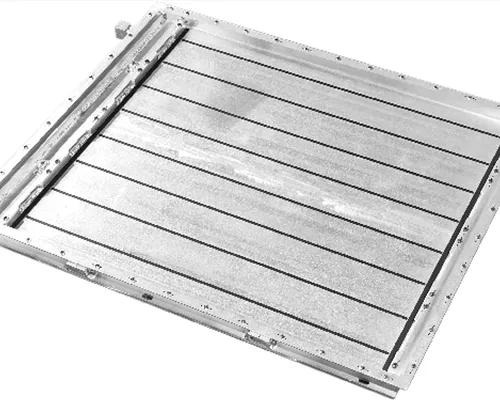

We replaced the original air-cooled system with a direct-contact liquid cooling solution, using a one-piece extruded aluminum cold plate. We optimized the fin structure and flow distribution through thermal simulation, and integrated a modular quick-connect manifold to simplify on-site installation and maintenance.
Result
- Maximum component temperature dropped from 82°C to 61°C
- Site cooling energy use reduced by 28%
- Annual downtime incidents decreased by 92%
- Site PUE improved from 1.34 to 1.09
- Equipment lifespan met the operator’s 10-year requirement
Outdoor Macro Radio Unit Thermal Management for Rural Telecom Networks Challenge
Challenge
A telecom provider’s outdoor macro radio units had serious overheating issues during summer peaks, where ambient temperatures exceeded 45°C. Standard heat sinks could not cool the units evenly, causing a 12% drop in performance during high-traffic hours and shortening equipment life to just 4 years.
Solution
We designed a high-performance passive thermal solution with a custom heat pipe assembly, combined with a phase-change thermal interface material (TIM). We optimized the fin stack layout and airflow path using CFD simulation, eliminating the need for active liquid cooling in the harsh outdoor environment.
Result
- Temperature difference across the unit reduced from 11°C to <4°C
- Radio signal output stability improved by 18%
- Equipment lifespan extended to over 8 years
- Passed 72-hour continuous high-temperature testing with no performance loss
- On-site maintenance calls reduced by 30%
Edge Server Cold Plate Upgrade for a Telecom Cloud Data Center
Challenge
A major telecom cloud provider hit thermal bottlenecks in edge servers during 5G traffic spikes. Local hotspots on CPUs and accelerators caused 10% CPU throttling, forcing the data center to overcool entire racks and increasing energy costs by 35%.
Solution
We developed a highly efficient cold plate solution using vacuum brazed (VB) construction. The design features a targeted jet-impingement flow pattern to cool high-heat components directly, while using low-resistance channels to reduce pumping power. We also integrated a pressure relief system to enhance long-term reliability.
Result
- CPU core temperatures reduced by 19°C
- Server operating efficiency improved by 12%
- Data center cooling energy use cut by 31%
- All overheat protection and leak-tightness tests passed
- Servers can now handle 20% higher load without hardware upgrades
Successful Cases
Extrusion Heat Sink for Medical Equipment
Elevate the thermal management of your medical equipment with PT Heatsink’s Aluminum Extrusion Heat Sink solutions. Crafted from high-quality aluminum alloys like 6061 and 6063, our extrusion heatsinks provide a cost-effective and efficient cooling solution for critical medical applications.
Our extrusion heat sinks stand out as the most cost-effective solution, ensuring efficient heat dissipation for medical equipment. This cost efficiency allows you to allocate resources to other crucial aspects of your projects.
Designed for forced convection, our extruded heat sinks guarantee the best thermal performance. The use of A6063 with high thermal conductivity (209 W/m-K) ensures that your medical devices operate at optimal temperatures, promoting reliability and longevity.
Enjoy the flexibility of length customization without the need for new tooling. This adaptability allows our extrusion heat sinks to seamlessly integrate into diverse medical equipment designs, optimizing both form and function.
PT Heatsink’s Extrusion Heat Sink solutions for Medical Equipment offer a trifecta of benefits: cost-effective cooling, optimal thermal performance, and flexible design options. With our extensive experience, state-of-the-art facilities, and certified quality assurance, we are your trusted partner in ensuring top-notch thermal management for critical medical applications.
Skived Heat Sink for Medical Equipment
Unlock superior thermal efficiency for your medical equipment with PT Heatsink’s Skived Heat Sink solutions. As a trusted manufacturer with over two decades of experience, we offer innovative skived fin heat sinks that provide high fin density and exceptional thermal performance.
The skived fin design ensures a high aspect ratio, maximizing surface area for optimal heat dissipation. This feature is critical in maintaining the temperature of sensitive components in medical equipment.
Our skived heat sinks boast thin fin technology, allowing for efficient cooling in applications with limited space. This is particularly advantageous in medical devices where space optimization is paramount.
With non or low tooling costs, skived heat sinks are easy and inexpensive to prototype. This cost-effectiveness is crucial during the development phase of medical equipment, allowing for iterative improvements without breaking the budget.
PT Heatsink’s Skived Heat Sink solutions for Medical Equipment offer a trifecta of advantages: high aspect ratio for superior heat dissipation, thin fin technology for space optimization, and cost-effective prototyping. Trust our over 20 years of expertise to deliver innovative thermal solutions, ensuring the reliability and longevity of your critical medical devices.
Liquid Cooling Plate for Medical Equipment
Revolutionize the thermal management of your medical equipment with PT Heatsink’s Liquid Cooling Plate solutions. Specifically designed for high-power applications, our custom cold plates ensure superior performance, making them an ideal choice for critical medical devices.
Liquid cooling plates excel in dissipating heat from high-power medical equipment, ensuring efficient operation even in demanding conditions. This capability is crucial for maintaining the performance and longevity of sensitive medical devices.
Whether it’s lasers, wind power generation, transportation, or military electronics, our liquid cooling plates offer versatile and superior cooling solutions. This adaptability makes them a go-to choice for various medical applications with diverse thermal requirements.
Liquid cooling plates outperform traditional air-cooled solutions, particularly in high-watt density applications. This translates to enhanced reliability and consistent performance for your medical equipment, critical for the healthcare industry’s stringent standards.
PT Heatsink’s Liquid Cooling Plates revolutionize thermal management for medical equipment. With efficient high-watt density cooling, versatile applications, and superior performance over air-cooled alternatives, our custom plates ensure optimal functioning and longevity. Trust our expertise to elevate your medical equipment’s thermal efficiency.
More Than Just A Heat Sink Manufacturer
Own Factory
91000 square feet primary facility with leading industry equipment, not only we can provide you the competitive price, but also support you with flexibility manufacturing planning to ensure deliver heat sink to you on time.
Experienced Staff
Our engineer has over 10 years experience in heat sink industry, our workers are with us over 8 years, our sales are 24/7 standby to solve your problem.
Heatsink Design
Our R&D engineers are bachlor degree and finished 500+ heat sink & cooling plate project design, 97% build prototype and 85% introduce to mass production.
Manufacturing Proposal
We always provide design for manufacturability (DFM) to customer when we make a quote based on the drawing.
Logistic Support
We offer courier, sea freight & air freight transportation to deliver your project, ex-works, FOB, CIF, DAP, DDP, whatever inco-terms works for you, we are happy with it.
Certified Factory
ISO9001, ISO14001 & IATF16949 certified, RoHS & REACH compliance.
