Cold Plate Manufacturer for Automotive
Welcome to PT Heatsink – Your Ultimate Destination for Advanced Thermal Solutions in Automobiles. From Brazing Cold Plates engineered for precision to Tube Embedded Cold Plates ensuring peak thermal efficiency and Friction Stir Welding Cold Plates for unrivaled durability, we redefine automotive thermal management. Choose us for cutting-edge technology, expert design services, and a commitment to excellence.
Our Partner :
Who we are
Solve all your thermal problems
PT Heatsink is one of the leading heat sink manufacturer for storage energy in China, we provide the most complete thermal solution with decades of design and manufacturing experiences
20+
Successful Cases
Liquid Cooling Optimization for Power Battery of New Energy Vehicles
Challenge
The power battery pack of a pure electric passenger car from a mainstream automaker has the problem of excessive internal temperature difference under 4C fast charging and high-low temperature operating conditions. During fast charging, the maximum temperature of the battery cells reaches 65℃, with a temperature difference of up to 8℃, which directly leads to a 7% decrease in fast charging efficiency, shortens the battery service life to 6 years/120,000 kilometers, results in a 20% winter range attenuation rate, and fails to meet the automaker’s 8-year/150,000-kilometer warranty standard.
Solution
Replace the original air-cooling system with an indirect liquid-cooling system, customize a high thermal conductivity aluminum alloy water-cooling plate, optimize the cooling liquid flow channel design through CFD thermal simulation technology, equip with an intelligent temperature control system, and optimize the pipeline layout while adding a leakage monitoring function to adapt to the complex operating conditions during vehicle driving.
Result
- The maximum temperature of fast-charging battery cells is reduced to 43℃, and the internal temperature difference is controlled within ≤2℃, which fully meets the industry’s precise temperature control standard of ±2℃
- The battery service life is extended to 8 years/150,000 kilometers, and the cycle life is increased from 800 times to 1100 times, which is consistent with the mainstream measured level of the industry
- The fast charging efficiency is increased by 7%, the winter range attenuation rate is reduced to 12%, and the comprehensive energy consumption of the whole vehicle is optimized by 5%
- Successfully passed harsh tests such as high-low temperature and leakage, the cooling system operates stably without any Performance degradation
Liquid Cooling Solution for Electric Drive System of New Energy Commercial Vehicles
Challenge
The electric drive system (motor + controller) of a certain electric heavy-duty truck generates concentrated heat under heavy-load and uphill operating conditions. The traditional oil-cooling solution has insufficient heat dissipation efficiency, leading to the maximum temperature of the motor stator reaching 110℃ and the IGBT module temperature reaching 105℃, an 8% attenuation in power output, 10 annual fault shutdowns, a service life of only 4 years for the electric drive system, and high maintenance costs.
Solution
Adopt oil-water combined cooling solution. The motor stator uses water jacket cooling, and the rotor adopts precise oil spray cooling to jointly boost heat dissipation.
The controller is fitted with vacuum brazed cold plates for accurate heat dissipation. Optimize flow channel design and integrate operation monitoring system. Eco-friendly cooling liquid is applied to greatly cut maintenance frequency.
Result
The temperature of the motor stator is reduced to 95℃, and the temperature of the IGBT module is reduced to 90℃, both below the safe operation threshold, completely solving the overheating hidden danger
The power output attenuation is controlled within ≤2%, the number of annual fault shutdowns is reduced to 1, saving USD1,000 in annual maintenance costs, which is in line with the actual operation needs of commercial vehicles
The service life of the electric drive system is extended to 6 years/250,000 kilometers, the energy efficiency conversion rate is increased to 94%, and the range under heavy-load conditions is increased by 8%
Liquid Cooling Upgrade for Domain Controller of Intelligent Connected Vehicles
Challenge
The chip heat generation of the domain controller of a certain L3-level intelligent connected vehicle has surged. The traditional air-cooling solution has insufficient heat dissipation capacity, leading to the chip operating at a high temperature of ≥83℃ for a long time, resulting in problems such as 10% computing power frequency reduction and increased response delay, an annual failure rate of 4.8%, and the noise of the air-cooling fan affecting riding comfort
Solution
Adopt a direct-contact liquid-cooling solution, customize a microchannel cold plate to directly attach to the core heating components of the domain controller, optimize the structural design to improve heat exchange efficiency, equip with a low-noise electronic water pump and intelligent temperature control algorithm, and simplify the installation and later maintenance processes.
Result
The maximum temperature of the chip is reduced to 60℃, and the temperature fluctuation is controlled within ≤2℃, which fully meets the optimal operating temperature range of the chip
- Completely solve the problem of chip computing power frequency reduction, shorten the response delay, increase the operating efficiency by 10%, reduce the annual failure rate to 0.5%, and the data is consistent with the industry measured standards
The operating noise of the liquid-cooling system is ≤22dB, which effectively improves riding comfort, the load capacity of the domain controller is increased by 18%, and it can support the expansion of higher-level autonomous driving functions
Cold Plates for Automobile Industry
In automotive engineering, cold plate manufacturing employs diverse techniques for efficient thermal management.
Brazing joins metals using a molten filler material, creating robust structures for efficient heat transfer.
Tube-embedded cold plates incorporate tubing for fluid circulation, optimizing heat dissipation. They are commonly used in vital automotive components like electronics and batteries.
Friction stir welding cold plates use a solid-state welding process to ensure strong, heat-resistant bonds. This method is ideal for critical thermal management applications in automobiles.
Brazing Cold Plate in Automobiles
Unveil the Precision of PT Heatsink’s Brazing Cold Plates, Engineered for Automotive Excellence. Designed to meet the stringent demands of both trucks and electric vehicles (EVs), our Brazing Cold Plates redefine thermal management for optimal performance and reliability.
Crafted with precision brazing techniques, our cold plates optimize heat conductivity, ensuring efficient heat dissipation. This enhances the longevity and performance of thermal systems in trucks and contributes to sustained efficiency in electric vehicles.
Meticulously engineered for rugged demands, our cold plates provide robust durability. Whether in the challenging conditions of trucks or the dynamic environment of EVs, these plates deliver a dependable cooling solution, crucial for heavy-duty applications and extended journeys.
Specifically designed to thrive in automotive environments, our Brazing Cold Plates are customized for the unique thermal challenges of both trucks and electric vehicles. This tailored approach ensures reliable cooling performance under diverse conditions, contributing to the overall efficiency of your automotive fleet.
PT Heatsink’s Brazing Cold Plates redefines automotive thermal management with precision, durability, and tailored solutions. Count on our plates for peak performance and longevity, whether on highways or in electric vehicles, ensuring cutting-edge thermal solutions that elevate efficiency and reliability across your automotive spectrum.

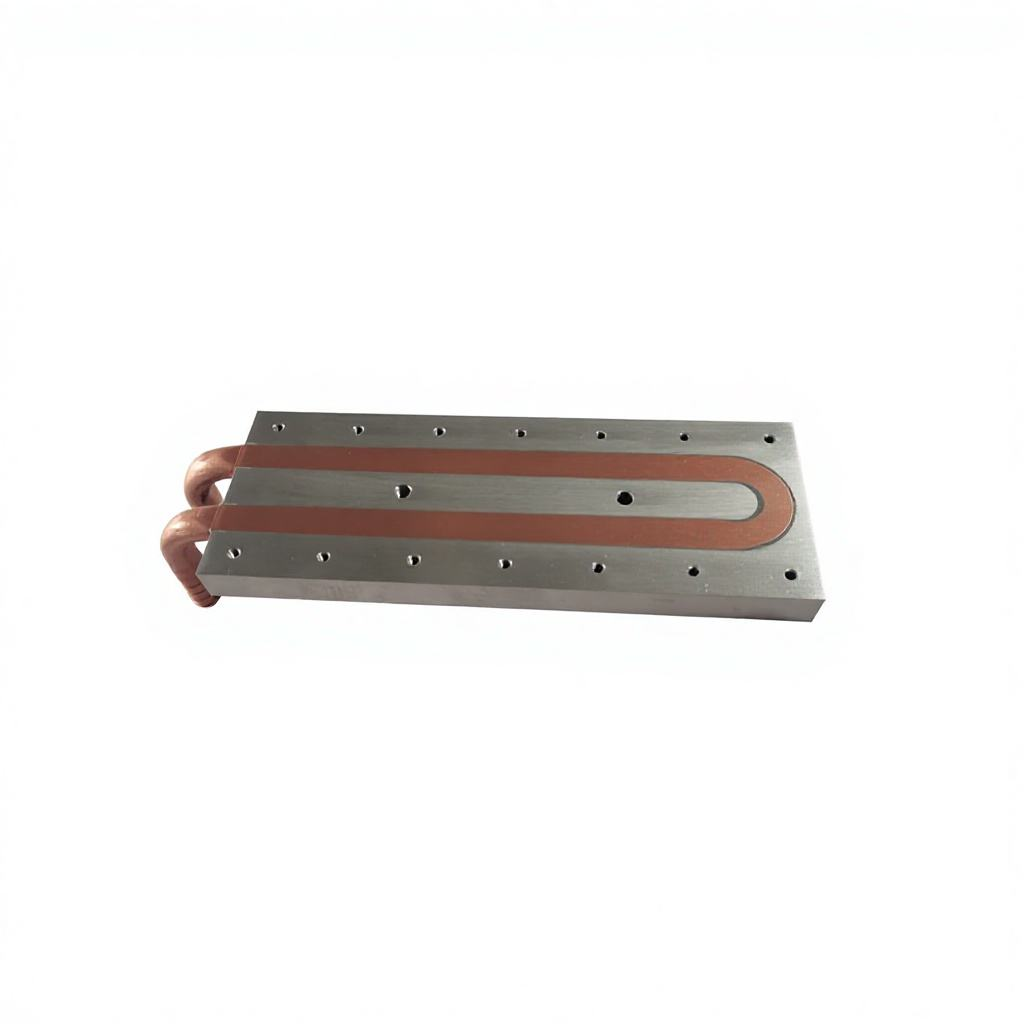

Tube Embedded Cold Plate in Automobiles
Experience Peak Thermal Efficiency with PT Heatsink’s Tube Embedded Cold Plates, meticulously crafted for outstanding performance in both Trucks and Electric Vehicles (EVs). Our innovative design ensures superior heat dissipation, setting a new standard for automotive thermal management.
Achieve optimal heat dissipation, enhancing the performance and durability of both trucks and EVs. Our Tube Embedded Cold Plates excel in efficient heat transfer, addressing the unique demands of diverse automotive applications.
Engineered with a compact design, these cold plates maximize space utilization without compromising efficiency. Ideal for trucks and EVs, this design ensures effective cooling while optimizing valuable space within the thermal system.
Tailored for a range of cooling applications, our Tube Embedded Cold Plates offer versatility. From critical engine components in trucks to battery systems in EVs, these plates adapt seamlessly to diverse cooling needs, streamlining thermal management.
PT Heatsink’s Tube Embedded Cold Plates lead automotive thermal solutions with efficient heat transfer, space-optimized design, and versatile cooling for trucks and electric mobility. Elevate your automotive fleet’s performance and reliability with our cutting-edge thermal technology, transcending conventional cooling systems. Choose PT Heatsink for innovation that pushes boundaries.
Friction Stir Welding Cold Plate in Automobiles
Experience Unrivaled Durability and Efficiency with PT Heatsink’s Friction Stir Welding Cold Plates, Engineered for Superior Performance in Trucks and Electric Vehicles (EVs). Our state-of-the-art Friction Stir Welding technology establishes a new standard in automotive thermal management, ensuring robust joints for lasting reliability.
Whether in trucks or EVs, our Friction Stir Welding Cold Plates boast unmatched joint strength, enhancing overall durability. This robust construction ensures resilience under demanding conditions, contributing to the longevity of the thermal system.
Engineered for optimal thermal conductivity, these cold plates excel in efficient heat dissipation. This is crucial for both trucks and EVs, where enhanced cooling contributes to sustained performance, even during prolonged journeys and heavy-duty operations.
Built to thrive in diverse environments, our Friction Stir Welding Cold Plates provide adaptability to extreme temperatures and vibrations. This adaptability ensures consistent cooling performance, making them ideal for the demanding conditions of trucks and electric vehicles alike.
PT Heatsink’s Friction Stir Welding Cold Plates redefine auto thermal management with superior strength, optimal conductivity, and adaptability. Whether in trucks or electric vehicles, our plates ensure durability, reliability, and efficient heat dissipation. Choose PT Heatsink for groundbreaking technology setting new benchmarks in thermal management for your entire automotive fleet.
More Than Just A Heat Sink Manufacturer
Own Factory
91000 square feet primary facility with leading industry equipment, not only we can provide you the competitive price, but also support you with flexibility manufacturing planning to ensure deliver heat sink to you on time.
Experienced Staff
Our engineer has over 10 years experience in heat sink industry, our workers are with us over 8 years, our sales are 24/7 standby to solve your problem.
Heatsink Design
Our R&D engineers are bachlor degree and finished 500+ heat sink & cooling plate project design, 97% build prototype and 85% introduce to mass production.
Manufacturing Proposal
We always provide design for manufacturability (DFM) to customer when we make a quote based on the drawing.
Logistic Support
We offer courier, sea freight & air freight transportation to deliver your project, ex-works, FOB, CIF, DAP, DDP, whatever inco-terms works for you, we are happy with it.
Certified Factory
ISO9001, ISO14001 & IATF16949 certified, RoHS & REACH compliance.
