Heat sink technology plays an essential role in modern electronics, ensuring devices operate within safe temperature ranges. This technology is critical for businesses dealing with electronics, as proper thermal management can enhance performance, extend the lifespan of devices, and prevent malfunctions caused by overheating. In this article, we will explore the fundamentals of heat sink technology, its key components, materials, and its role in various industries, ensuring businesses can make informed decisions regarding thermal management solutions.
What Are Heat Sinks?

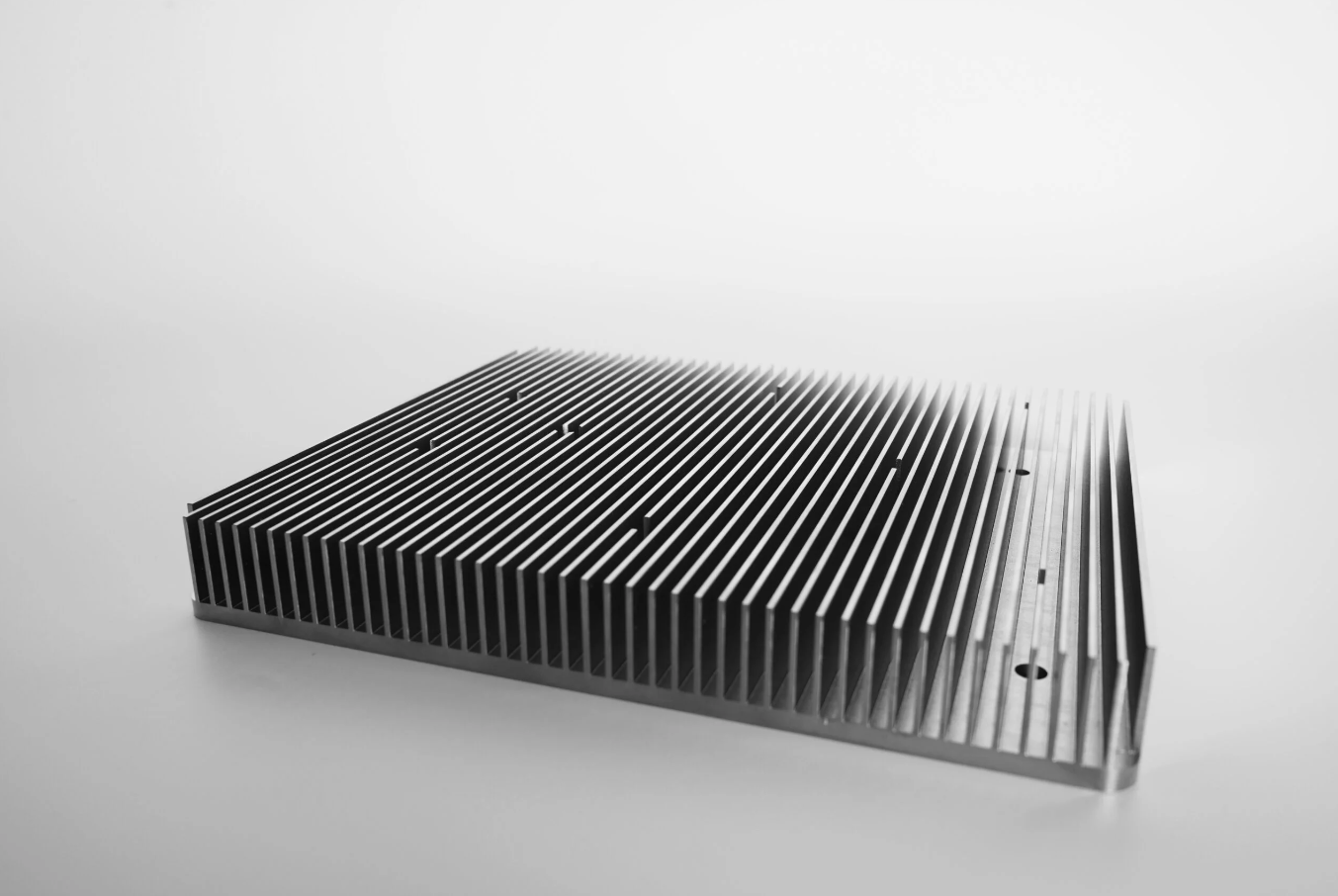

A heat sink is a passive thermal device that helps dissipate heat from electronic components, ensuring they remain cool enough to function properly. In simple terms, a heat sink works by transferring heat generated by a component (like a CPU or power supply) to the surrounding air or liquid, preventing overheating.
Preventing Device Overheating
Heat sinks are especially important in high-performance systems where electronic components generate large amounts of heat. Without adequate cooling, these components can exceed their thermal limits, leading to reduced efficiency, system failures, and, in extreme cases, permanent damage. For businesses that rely on efficient and uninterrupted operations, such as data centers or industrial machinery, effective heat sink solutions are paramount to preventing costly downtime and ensuring optimal performance.
How Heat Sinks Work
Heat sinks operate using three fundamental principles of heat transfer: conduction, convection, and radiation.
Conduction
Conduction is the direct transfer of heat from one material to another. In a heat sink, heat is conducted from the heat source (such as a processor or electronic chip) into the heat sink itself. Materials with high thermal conductivity, such as aluminum or copper, are used for this purpose because they can quickly and efficiently transfer heat away from the component.
Convection
Once the heat has been transferred to the heat sink, convection takes over. In natural convection, heat is dissipated into the surrounding air through the movement of air molecules. Forced convection, on the other hand, involves the use of fans or pumps to increase airflow, which enhances the cooling effect. This is especially useful in high-performance applications where passive cooling may not be sufficient.
Radiation
The final mode of heat transfer is radiation, where heat is emitted in the form of electromagnetic waves. Although less significant compared to conduction and convection, radiation still contributes to the overall cooling process, particularly in environments with limited airflow.
By leveraging these three mechanisms, heat sinks play a crucial role in maintaining safe operating temperatures for electronic components.
Materials Used in Heat Sink Technology
The material used in a heat sink significantly impacts its performance. Common materials include aluminum and copper, each with its own set of advantages and disadvantages.
Aluminum
Aluminum is the most commonly used material for heat sinks due to its balance of thermal conductivity, weight, and cost. Although aluminum has a lower thermal conductivity compared to copper, it is lightweight and can be manufactured more easily, making it a cost-effective solution for many applications.
Advantages of Aluminum:
- Lightweight, which reduces overall product weight
- Cost-effective and widely available
- Sufficient thermal conductivity for many applications
Copper
Copper offers superior thermal conductivity compared to aluminum, making it a better choice for high-performance applications that generate large amounts of heat. However, copper is heavier, more expensive, and more difficult to manufacture.
Advantages of Copper:
- Excellent thermal conductivity, which leads to better heat dissipation
- Ideal for applications requiring maximum heat transfer
Disadvantages:
- Heavier than aluminum, which may not be suitable for all designs
- Higher cost and more complex to manufacture

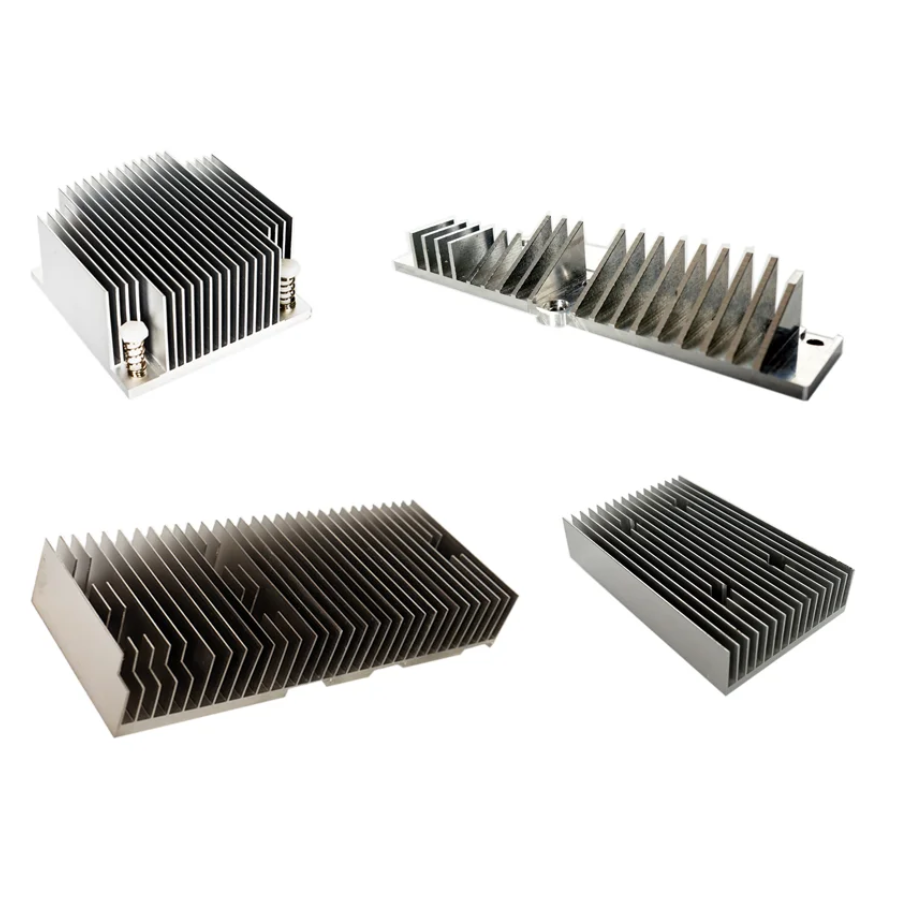

Types of Heat Sinks
There are various types of heat sinks, each designed for different applications and cooling requirements. The two main categories are passive and active heat sinks.
Passive Heat Sinks
Passive heat sinks rely on natural convection to dissipate heat and do not have any moving parts. These heat sinks are commonly made from extruded aluminum and are used in low-power applications where the heat generated is relatively small.
Advantages of Passive Heat Sinks:
- No moving parts, making them more reliable and less prone to failure
- Lower cost and simpler design
- Suitable for applications with low thermal demands
Active Heat Sinks
Active heat sinks incorporate fans, pumps, or blowers to improve heat dissipation by increasing airflow around the heat sink. Active heat sinks are more efficient than passive ones but require additional power and may introduce noise and mechanical wear.
Advantages of Active Heat Sinks:
- More effective at cooling high-performance components
- Can handle higher thermal loads
- Prevents thermal runaway in demanding applications
Specialized Heat Sinks
Liquid-Cooled Heat Sinks: These systems use liquid to transfer heat away from the component. The liquid absorbs heat and then flows through a radiator where it cools down before recirculating. Liquid-cooled heat sinks are highly effective and are often used in high-performance computing and gaming systems.
Heat Pipe Heat Sinks: These use sealed tubes filled with a working fluid that evaporates and condenses to transfer heat. Heat pipes are often integrated into heat sinks to improve thermal performance without needing active cooling.
Vapor Chambers: Vapor chambers work similarly to heat pipes but are flat and spread heat more uniformly. They are ideal for applications requiring even heat distribution.
Designing Effective Heat Sinks
Heat sink design plays a crucial role in its overall performance. Several factors must be considered to optimize heat dissipation.
Geometry
The shape and surface area of the heat sink determine how efficiently it can dissipate heat. Fins or pins are commonly added to increase surface area, allowing for more heat to be transferred to the surrounding air or liquid.
Material
As discussed earlier, the material chosen affects the thermal conductivity and weight of the heat sink. The choice between aluminum, copper, or composite materials depends on the specific cooling needs and design constraints.
Surface Treatment
Surface treatments such as anodizing can improve the heat sink’s ability to radiate heat. Coatings may also be applied to protect the heat sink from corrosion and improve its durability.
Airflow
Airflow is essential for effective convection. The placement of the heat sink, its orientation, and the surrounding environment must be optimized to ensure proper airflow. In systems with forced convection, the design should facilitate the smooth flow of air over the heat sink’s surface.
Advanced Heat Sink Technologies
Recent advancements in heat sink technology have introduced new materials and designs that improve heat dissipation. Two notable innovations are vapor chambers and phase change materials (PCMs).
Vapor Chambers: Vapor chambers are sealed chambers filled with fluid that vaporizes and condenses to spread heat more evenly across the heat sink’s surface. These chambers improve cooling efficiency, especially in high-performance systems with uneven heat distribution.
Phase Change Materials (PCMs): PCMs absorb and release heat during phase transitions, providing more effective thermal management. PCMs are particularly useful in applications where heat loads vary significantly.
Applications of Heat Sink Technology
Heat sinks are used in a wide range of industries, from consumer electronics to industrial machinery. Some common applications include:
Electronics
In computers and consumer electronics, heat sinks are used to cool components such as CPUs, GPUs, and power supplies. Efficient heat sinks ensure these components run smoothly and avoid thermal throttling, which can reduce performance.
Automotive
Modern vehicles rely on electronic systems, such as electronic control units (ECUs), which generate heat. Heat sinks help manage this heat, ensuring the reliability and safety of vehicle electronics.
Renewable Energy
In renewable energy systems, such as solar inverters and wind turbines, heat sinks are used to cool power electronics. This improves efficiency and extends the lifespan of the equipment.
Industrial Machinery
Heat sinks are critical in industrial applications where large amounts of heat are generated. By ensuring efficient thermal management, heat sinks prevent overheating and reduce equipment maintenance costs.
Choosing the Right Heat Sink for Your Needs
When selecting a heat sink for your business, several factors must be considered:
- Thermal Resistance: The lower the thermal resistance, the better the heat sink’s ability to dissipate heat.
- Size and Shape: The size and shape should match the available space and cooling requirements of your device.
- Airflow: Adequate airflow is essential for effective cooling, especially in forced convection systems.
- Mounting Method: Proper mounting ensures efficient heat transfer. Thermal interface materials (TIMs), such as thermal paste or adhesive, should be used to improve contact.
Understanding the basics of heat sink technology is essential for businesses looking to enhance the performance and longevity of their electronic devices.
By selecting the right materials, design, and type of heat sink, businesses can ensure optimal thermal management and prevent costly failures due to overheating. For those in need of custom cooling solutions, PT Heatsink offers a range of heat sinks, including extruded, die-cast, and heat pipe options. Their expertise in thermal management ensures that you can find the perfect solution for your specific application.
FAQs
How do I determine the appropriate heat sink size for my device?
The size of the heat sink depends on the thermal load of your device, its operating environment, and the available space. It’s important to consider thermal resistance and airflow to ensure efficient heat dissipation.
Can heat sink technology improve the performance of my electronics?
Yes, effective heat sink technology can prevent overheating, which in turn improves device performance and longevity. Components that run cooler tend to have extended lifespans and maintain consistent performance, especially in high-demand environments.
What are the latest advancements in heat sink design?
Recent innovations in heat sink technology include the development of vapor chambers and phase change materials (PCMs). These advancements improve heat dissipation by distributing heat more evenly and effectively managing variable heat loads, particularly in high-performance applications.
How does material choice affect the efficiency of a heat sink?
The material used in a heat sink plays a crucial role in its thermal conductivity. Copper offers superior heat dissipation due to its high thermal conductivity, while aluminum is more affordable and lightweight, making it ideal for many standard applications. PT Heatsink offers both copper and aluminum heat sinks, allowing businesses to choose the best material based on their specific performance requirements and budget constraints.
Are there environmentally friendly options in heat sink technology?
Yes, environmentally friendly heat sink options are becoming more popular as businesses look to reduce their carbon footprints. For instance, liquid cooling systems and phase change materials (PCMs) offer more efficient thermal management, reducing energy consumption and enhancing overall system efficiency. Additionally, materials like aluminum are recyclable, contributing to more sustainable thermal management practices.
