Custom Heat Sink Manufacturer

Vapor Chamber Heat Sink

Vapor Chamber Heatsink is constructed from sealed copper plates and filled with a small amount of fluid such as deionized water that allows heat to be rapidly dispersed away from the source. Inside the chamber resides an internal support structure to prevent the buckling of chamber walls. Classified formally as a heatpipe, a vapor chamber is one of the best heat spreading options at the base of a heatsink; and typically used for high power devices. When combined with stamped fins, it creates a high-end thermal management device that can rapidly spread heat from a small source to a large surface area.

PT heatsink is one of the leading vapor chamber heat sink manufacturer in China, we have produced vapor chamber heat sink with stacked fin, vapor chamber heat sink with CNC machined

Latest Project

The Process Flow of Vapor Chamber Heat Sink

01. Powder Filling
02. Sintering
03. Remove Powder Fill Jig
04. Forming
05. Insert Supported Layer
06. Forming
07. Brazing
08. Leakage Test
09. Fill & Vacuum
10. Tail Welding
11. Forming
12. Aging
13. Q-Load
14. Soldering to fin/baseplate

Vapor Chamber Heat Sink Thermal Performance

VC Th'k mm Evaporation (Th'k mm) Condenser (Th'k mm) Wick Structure Q-Max (W)
3.0 1 0.6 Sintering Powder 300
2.5 0.8 0.6 Sintering Powder 250
2.3 0.8 0.6 coating+sintering powder 250
2.0 0.6 0.6 Coating+sintering powder 200
1.6 0.4 0.4 Mesh+Groove 200
1.2 0.2 0.2 Mesh+Groove 200
0.6 0.15 0.15 Mesh + Groove 10

Types of Vapor Chamber

Vapor Chamber Heat Sink Design Guide

Custom Heat Sink Manufacturer

Why Choose Vapor Chamber Heat Sink From PT Heatsink

Real Factory

91,000 square feet primary facility to ensure you get the competitive price

Strong production capability

Industry-leading production machines to provide precision parts to ensure you get the exact parts that meets the drawing

One-stop Service

Design to prototype to serial order service to save you a lot of time and work

ODM Service

Seasoned engineers design heatsinks based on heat dissipation needs to offer the perfect heat sink suitable your application

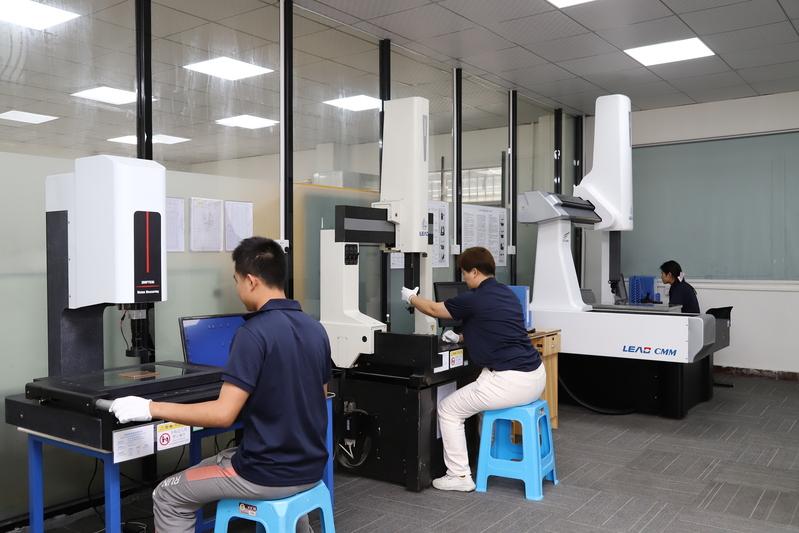

Top Quality

Strictly quality control from incoming material to finished goods to ensure high quality and reduce customer complain
